Two-piece design with 8-inch (200mm) LF panel and separate five-element MF/HF panel
Proprietary FidelityGlass™ acoustic panel and compression molded baffle.
Custom designed transducers with JBL premium acoustic crossover network.
Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.
Loudspeaker system installs like a standard drywall patch.
Paintable surface can be custom finished for complete invisibility.
C12PCB (for MF/HF panel) for C22PCB (for LF panel) Pre-Construction Boards (sold separately).
The flagship of the Series, the JBL Conceal C86 Invisible Loudspeaker is a 3-way, dual panel design, with a separate LF panel and a 5-driver 2-way MF/HF panel. Built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin, the finished loudspeaker panels install easily and disappear completely into the surrounding walls, allowing optimal placement virtually anywhere in a room. The JBL C86 is the ultimate solution for high-performance architectural audio.
- 3-way In-Wall/In-Ceiling loudspeaker
- Low Frequency Driver
- 8-inch (203mm) woofer with 1.5-inch (38mm) voice coil
- Mid Frequency Driver
- Four 1.18-inch (30mm) voice coil transducers with neodymium magnets
- High Frequency Driver
- 1-inch (25mm) voice coil transducer with neodymium magnet
- Recommended Amplifier Power
- 50 - 200 WRMS
- 4 Ohm
- Loudspeaker Sensitivity
- 84 dB/1W/1m measured in-room
- Frequency Response
- 45 Hz - 20 kHz (-6 dB) measured in-room
- Crossover Frequencies
- 600 Hz; 10 kHz
- Enclosure Type
- Sealed, with wooden back-box
- Three independent self-resetting devices (LF, MF and HF)
- Input Type
- Dual gold-plated spring-loaded binding posts
- 5 Years
- Mid-High Frequency Panel Dimensions
- 11-7/8" H x 15 -7/8" W x 3-7/8" D (302mm H x 403mm W x 98mm D)
- MF/HF Panel Cut-out Dimensions
- 12” H x 16” W (305mm H x 406mm W)
- MF/HF Panel Mounting Depth
- 3-3/8-inches (86mm)

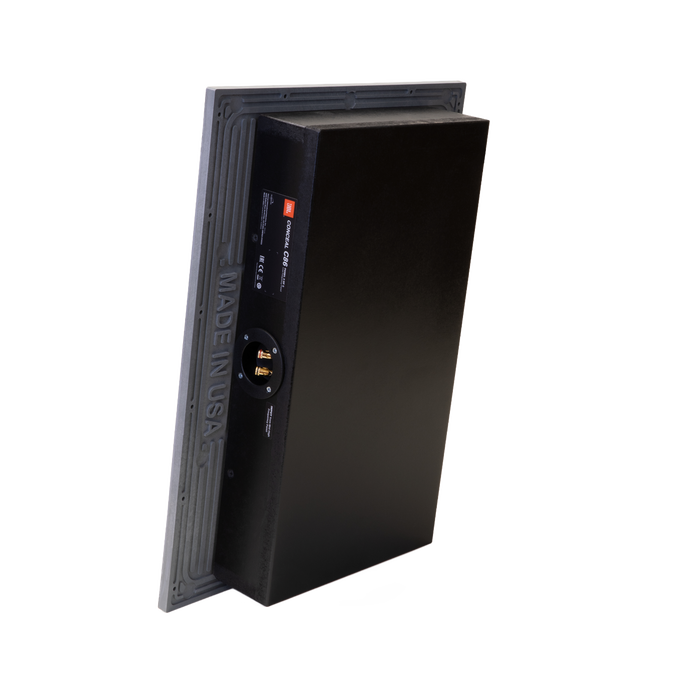

- Low Frequency Panel Dimensions
- 22" H x 15-7/8" W x 3-7/8" D (559mm H x 403mm W x 98mm D)
- LF Panel Cut-out Dimensions
- 22-1/8” H x 16” W (562mm H x 406mm W)
- LF Panel Mounting Depth
- 3-3/8-inches (86mm)
- Product Weight (MF/HF Panel)
- 12.9 lbs (5.9kg)
- Product Weight (LF Panel)
- 20.0 lbs (9.1kg)
- Shipping Weight
- 41.5 lbs (18.8kg)
