Conceal C83
DKK 0,00
Conceal C83 One-piece design with 8-inch (200mm) LF driver and duel-element MF/HF driver. - Image

One-piece design with 8-inch (200mm) LF driver and duel-element MF/HF driver.

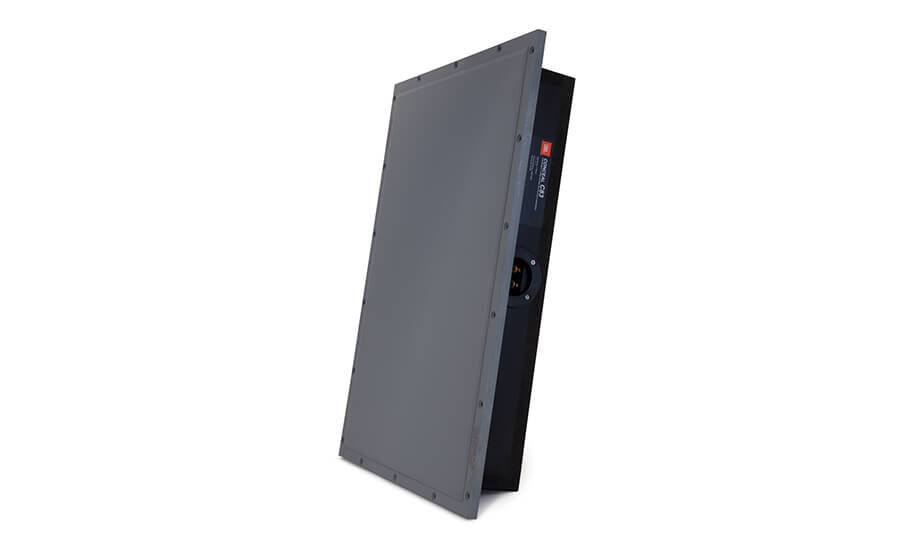

Conceal C83 Proprietary FidelityGlass™ acoustic panel and compression molded baffle. - Image

Proprietary FidelityGlass™ acoustic panel and compression molded baffle.

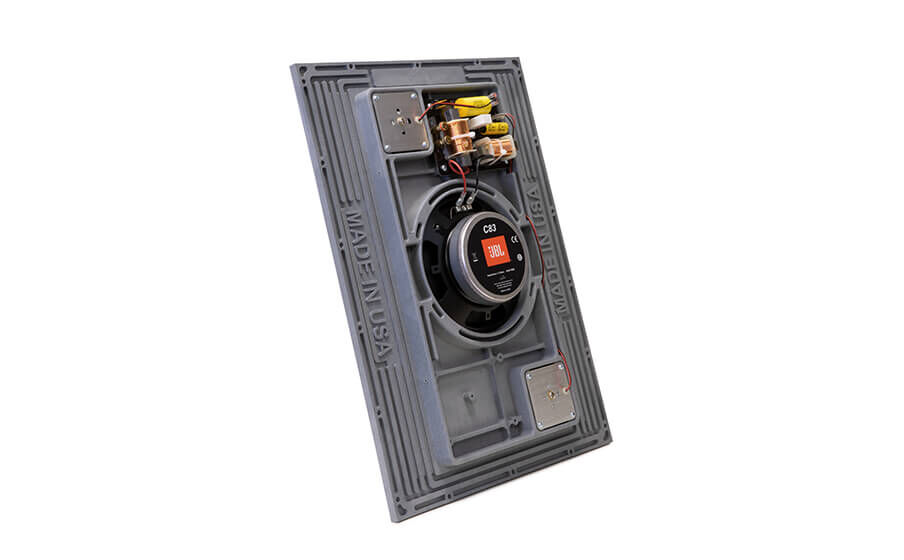

Conceal C83 Custom designed transducers with JBL premium acoustic crossover network. - Image

Custom designed transducers with JBL premium acoustic crossover network.

Funktioner

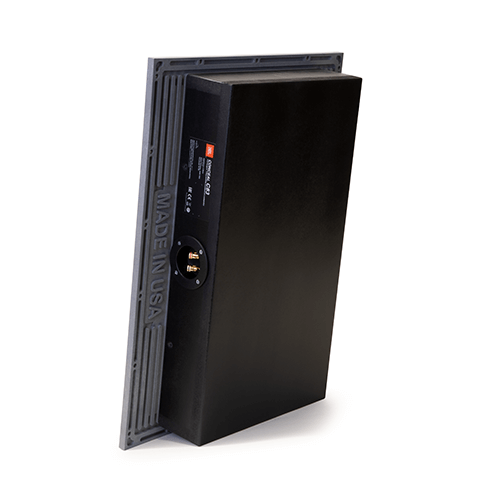

Conceal C83 Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces. - Image

Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.

Conceal C83 Loudspeaker system installs like a standard drywall patch. - Image

Loudspeaker system installs like a standard drywall patch.

Conceal C83 Paintable surface can be custom finished for complete invisibility. - Image

Paintable surface can be custom finished for complete invisibility.

Conceal C83 C12PCB Pre-Construction Boards (sold separately). - Image

C12PCB Pre-Construction Boards (sold separately).

Detaljer & Downloads

Item# JBLC83

Beskrivelse

Conceal C83

The JBL Conceal C83 Invisible Loudspeaker is a high-performance 3-element design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. The finished loudspeaker panel installs easily and disappears completely into the surrounding walls or ceiling, allowing optimal placement virtually anywhere in a home. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.

Specifikationer

Type
3-way In-Wall/In-Ceiling loudspeaker
Low Frequency Driver
8-inch (203mm) woofer with 1.5-inch (38mm) voice coil
Mid Frequency Driver
1.18-inch (30mm) voice coil transducer with neodymium magnet
High Frequency Driver
1-inch (25mm) voice coil transducer with neodymium magnet
Recommended Amplifier Power
50 - 160 WRMS
Impedance
4 Ohm
Loudspeaker Sensitivity
84 dB/1W/1m measured in-room
Frequency Response
45 Hz - 20 kHz (-6 dB) measured in-room
Crossover Frequency
500 Hz
Enclosure Type
Sealed, with wooden back-box
Protection
Two independent self-resetting devices (LF and MF/HF)
Input Type
Five-way gold-plated spring-loaded binding posts
Warranty
5 Years

Mål

Panel Dimensions
22" H x 15-7/8" W x 3-7/8" D (559mm H x 403mm W x 98mm D)
Cut-out Dimensions
22-1/8” H x 16” W (562mm H x 406mm W)
Mounting Depth
3-3/8-inches (86mm)
Product Weight
21.8 lbs (9.9kg)
Shipping Weight
25.5 lbs (11.5kg)

Dokumenter og downloads

Bedømmelser og Q&A

Kunde-anmeldelser

Spørgsmål og svar

where can i buy this?

Asked by: aj2020
Thanks for reaching out. Our JBL Conceal C83 one of our products supported by our Luxury Audio Specialists. You may contact them at (888) 691-4171 for more assistance.
Answered by: Customer Support
Date published: 2023-05-13
